Leaf Spring

Automotive leaf springs, also known as leaf springs, are key elastic components in vehicle suspension systems. They are primarily composed of several stacked spring steel sheets of varying lengths and curvature radii. They are secured by a central bolt and connected to the vehicle frame/body and axle via coiled lugs or other connections at both ends, providing load-bearing, cushioning, guidance, and shock absorption. The following systematically outlines its core knowledge points, including its basic definition, structural types, material properties, operating principles, design and manufacturing, application and maintenance, and development trends:

1. Basic Definition and Core Function

Definition: An elastic component composed of multiple (or a single) stacked elastic steel sheets utilizes the bending elastic deformation of the steel sheets to absorb impact energy, transmit force and torque, and constrain wheel motion.

Core Functions:

1. Carrying Vehicle Weight: Transmits vertical loads from the vehicle body to the axles, maintaining vehicle posture;

2. Cushioning and Shock Absorption: Absorbs impact and vibration caused by road irregularities, improving ride smoothness;

3. Transmitting Force and Torque: Transmits driving force, braking force (longitudinal), and steering force, also serving as a guiding mechanism (in non-independent suspension);

4. Limiting Wheel Play: Limits wheel play through elastic deformation to prevent interference with the vehicle body. II. Structural Components and Type Classification

1. Basic Structural Components

· Spring leaf: The core load-bearing component. Multiple leaves have a length that decreases from the center toward the ends (forming a variable curvature overlap). Single leaves have a variable cross-section design.

· Center bolt: Runs through the center of each spring leaf, securing the overlap and preventing relative slippage between leaves.

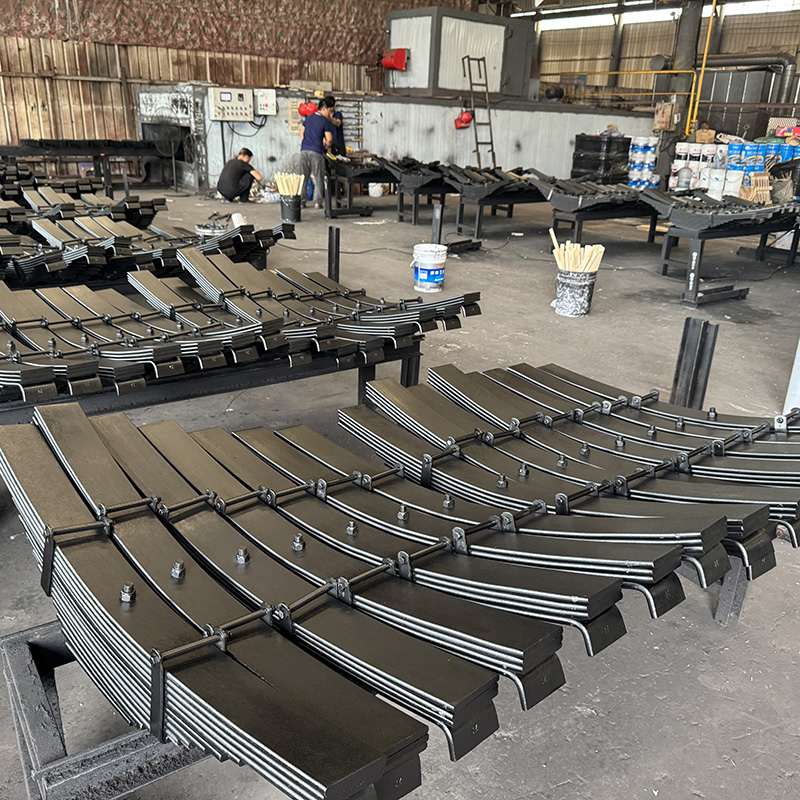

· Spring clip (clamp): Secures adjacent spring leaves to prevent friction and noise between leaves. Typically installed in the middle of the leaf or near the ends.

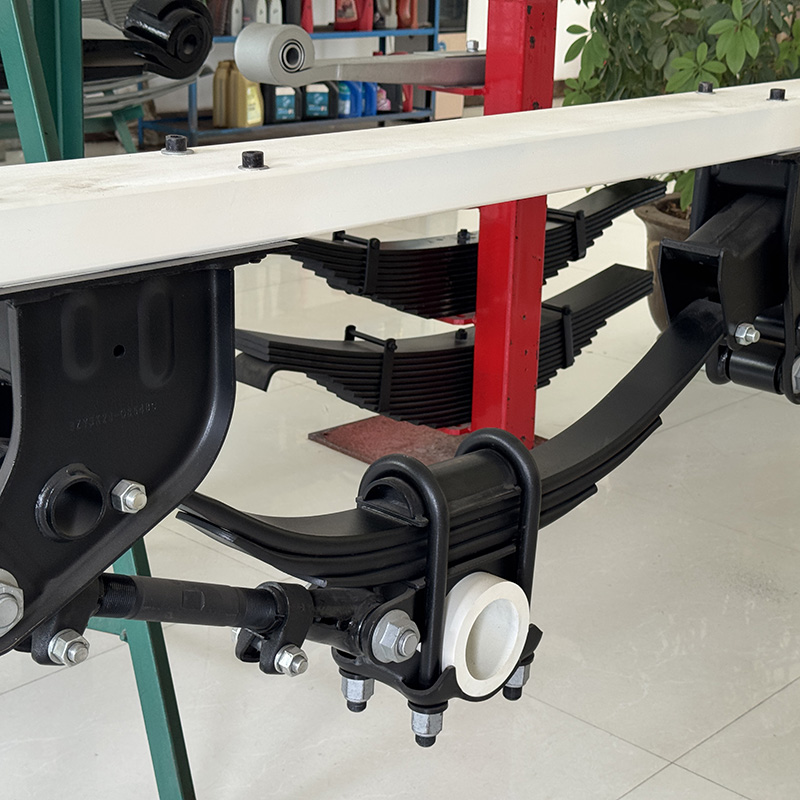

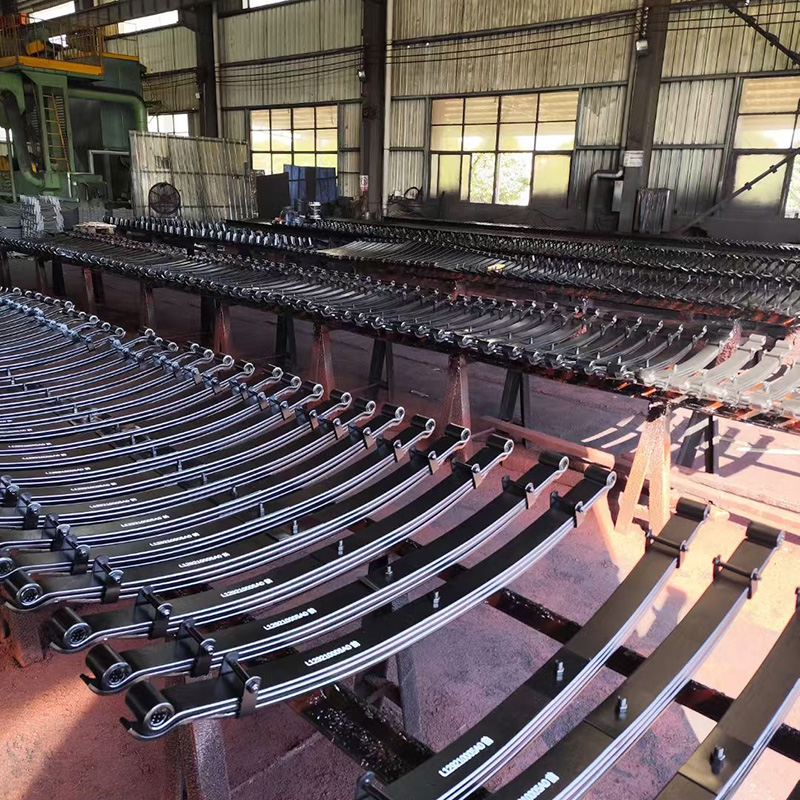

· Lug and lifting lug: The connecting structure at each end of the leaf spring (the lug is semicircular and contains a bushing). The lug connects to the vehicle frame/body or axle, allowing for angular changes during leaf spring deformation.

· Bushing: A wear-resistant component (rubber or metal) inside the lug that reduces friction and vibration transmission at the connection. 2. Main Types

Based on structure and function, they can be divided into the following categories:

Type

Features

Advantages

Disadvantages

Applications

Multi-leaf springs: 3-15 leaves, with equal thickness between leaves, decreasing length, and varying curvature radii. Advantages: Strong load-bearing capacity (higher total stiffness when stacked), simple structure, low cost, and easy maintenance. Disadvantages: High mass (increased unsprung mass), high interleaf friction (poor comfort), and high energy consumption. Suitable for rear suspensions of heavy trucks, large buses, and off-road vehicles.

Small-leaf variable-section leaf springs: 1-3 leaves, with thickness varying along the length (thicker in the middle, thinner at the ends), and a parabolic cross-section. Advantages: Lightweight (30%-50% lighter than multi-leaf springs), low interleaf friction (improved comfort), and uniform stress distribution. Disadvantages: Complex manufacturing process (requires precise control of cross-section changes) and high cost. Suitable for light trucks, pickup trucks, and some SUVs.

Single-leaf springs: Consists of only one variable-section leaf, resulting in a minimalist structure. Advantages: Extremely lightweight, no inter-plate friction; Disadvantages: Low load-bearing capacity, narrow stiffness adjustment range. Suitable for micro-vehicles, low-speed vehicles, or auxiliary load-bearing applications.

Gradually variable stiffness leaf springs feature a main leaf + auxiliary leaf structure. When unloaded, only the main leaf operates; when fully loaded, the auxiliary leaf contacts the main leaf, sharing the load. Stiffness increases with load. Advantages: Balances unloaded comfort with fully loaded load-bearing capacity. Disadvantages: Complex structure, requiring precise design of the auxiliary leaf contact points. Suitable for commercial vehicles that balance comfort and load-bearing performance.

III. Material Properties and Performance Requirements

Automotive leaf springs must withstand high-frequency bending fatigue and impact loads. Materials must possess high strength, high elasticity, long fatigue life, and good toughness. Common materials and performance requirements are as follows:

1. Typical Materials

· Spring steel: The most mainstream, such as 60Si2Mn (silicon-manganese spring steel, low cost and excellent hardenability), 50CrVA (chrome-vanadium spring steel, with improved high-temperature performance and fatigue strength), and 65Mn (manganese spring steel, used in low-load applications);

· Composite materials: Emerging trends, such as glass fiber reinforced plastic (GFRP) and carbon fiber reinforced plastic (CFRP), which have a density only 1/4 to 1/5 that of steel and offer higher fatigue strength.

2. Performance Requirements

· Mechanical Properties: High elastic limit (σe > 1200 MPa), high fatigue strength (bending fatigue limit > 500 MPa), and good hardenability (ensuring uniform properties through the thickness);

· Processability: Forgeability (facilitating hot forming), weldability (for some joining applications), and heat treatment stability (avoiding deformation and cracking);

· Environmental Performance: Corrosion resistance (surface requires painting or galvanizing), and temperature resistance (stable operating conditions from -40°C to 120°C). IV. Working Principle

Leaf springs achieve their functions through elastic bending deformation:

1. Vertical load bearing: The weight of the vehicle body is transferred to the center of the leaf spring through the frame, causing the leaf spring to bend downward. Each leaf spring shares the bending moment, and the load is transferred between the leaves through friction (unlubricated) or padding (lubricated).

2. Impact cushioning: When the road surface is bumpy, the wheel pushes upward on the leaf spring end, causing it to bend upward (reducing its curvature), converting the impact kinetic energy into elastic potential energy. When the road surface is concave, the leaf spring returns to its original shape, releasing this potential energy and cushioning the shock.

3. Force and torque transmission: Driving/braking forces are transmitted to the leaf spring through the axle. The leaf spring transmits the force to the frame through a coil eye-hanger structure, while also limiting longitudinal movement of the axle. During cornering, the leaf spring absorbs lateral forces, limiting lateral movement of the axle. V. Design and Manufacturing Process

1. Key Design Points

· Stiffness Matching: Design the stiffness curve based on the vehicle load (empty/loaded) to avoid excessive rigidity (poor ride comfort) or excessive flexibility (instability in vehicle posture);

· Stress Distribution: Utilize a variable cross-section design (fewer panels) or inter-panel thickness gradient (multiple panels) to achieve uniform stress distribution across panels/sections, avoiding localized stress concentration;

· Fatigue Life: Optimize the structure through finite element analysis (FEA) to ensure failure-free operation under 10⁶ cycles;

· Lightweighting: While maintaining strength, utilize designs such as fewer panels, variable cross-sections, and composite materials to reduce unsprung mass (improving handling and fuel efficiency). 2. Key Manufacturing Processes

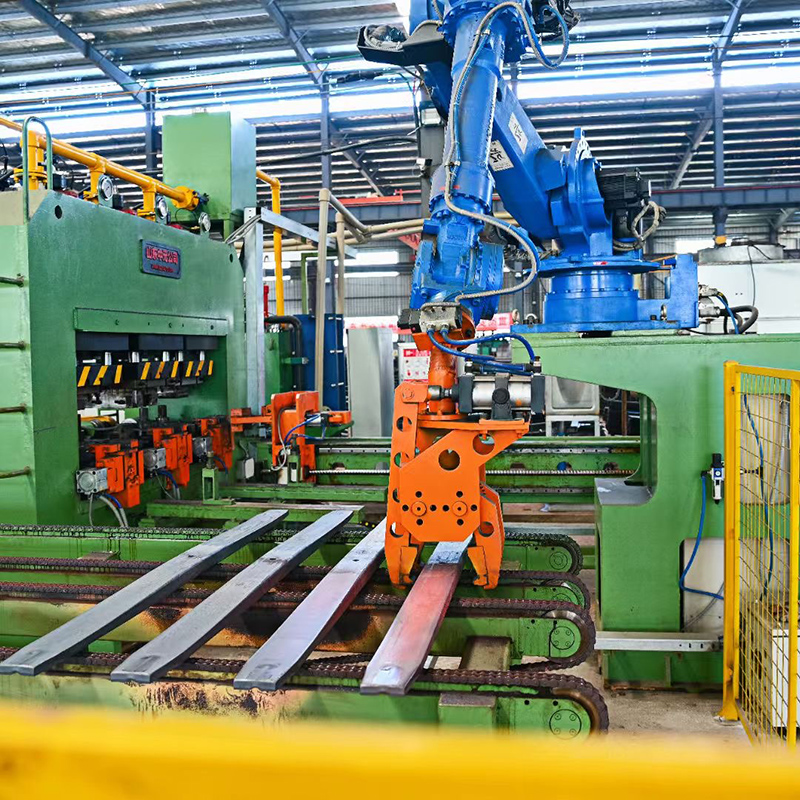

· Cutting and Forming: After cutting, the steel plate is bent to a predetermined curvature through hot forming (heating to 800-1000°C), or cold forming (rolling at room temperature, suitable for thin steel plates);

· Heat Treatment: The core process, typically consisting of quenching (850-900°C water quenching) followed by intermediate-temperature tempering (400-500°C), achieves a tempered troostite structure (hardness HRC 42-48), achieving both strength and toughness;

· Strengthening: Shot peening (high-speed steel shot impacts the surface, introducing residual compressive stress and increasing fatigue strength by 30%-50%), and edge chamfering (eliminating stress concentration);

· Assembly: Multiple pieces are secured with a central bolt, with graphite grease applied between the pieces to reduce friction and wear. Spring clips and connecting components (wrap ears and lifting lugs) are then installed. VI. Performance Parameters and Evaluation Indicators

· Free Curvature Radius: The radius of curvature of the leaf spring when unloaded, which determines the initial stiffness.

· Deflection: The maximum deflection of the leaf spring under rated load (usually 100-300mm, depending on suspension travel).

· Stiffness: The load required per unit deflection (N/mm). The stiffness of a multi-leaf spring is approximately the sum of the stiffnesses of each individual leaf spring, while the stiffness of a variable-section spring is adjusted by the cross-section thickness distribution.

· Fatigue Life: The number of fracture cycles under rated load (the national standard requires ≥ 2 × 10⁵ cycles, and commercial vehicles require ≥ 10⁶ cycles).

· Natural Frequency: The resonant frequency of the leaf spring-body system (1-3Hz is a comfortable range; higher values can cause turbulence, while lower values can cause motion sickness). VII. Common Failures and Maintenance

1. Typical Failures and Causes

· Fracture: Material fatigue (high-frequency vibration), overload (overload or impact load), stress concentration (cracks in the leaf spring, loose center bolt), corrosion (failure to promptly prevent rust);

· Reduced elasticity: Plastic deformation caused by long-term overload, improper heat treatment (excessive tempering temperature);

· Abnormal noise: Loss of lubrication between leaf springs (dry friction), loose spring clips (relative sliding between leaf springs), wear of the leaf spring bushing (metal impact);

· Eccentric wear: Misaligned installation (leaf spring not perpendicular to the axle), uneven U-bolt preload (uneven force distribution between leaf springs). 2. Maintenance Key Points

· Regular Inspection: Visually inspect for cracks and deformation, and measure the free curvature radius (to determine elastic attenuation);

· Tightening and Lubrication: Tighten the center bolt and U-bolts (to the specified torque), and apply graphite grease between the plates;

· Replacement Standard: Replace when a single crack is longer than 50mm or deeper than 1/3 of the plate thickness to prevent breakage and failure;

· Anti-corrosion Treatment: Apply anti-rust paint or galvanize the surface to prevent corrosion from salt, alkali, and muddy water. VIII. Application Scenarios and Vehicle Compatibility

· Commercial Vehicles: Heavy-Duty Trucks (multi-leaf springs, 5-50 ton load capacity), Large Passenger Buses (multi-leaf springs or variable-strength springs, balancing passenger and luggage loads);

· Light Vehicles: Pickup Trucks, Light Trucks (several-leaf springs with variable cross-section, lightweight and load-bearing), Some Hardcore SUVs (multi-leaf springs for improved off-road load capacity, such as the Jeep Wrangler);

· Minicars/Low-Speed Vehicles: Single-leaf springs or simplified 2-3-leaf springs (low cost, low load);

· Passenger Cars: Rarely used (predominantly coil springs + independent suspension), except for the rear suspension of some economy cars (such as the early Xiali). IX. Development Trends

1. Lightweighting: Composite leaf springs (GFRP/CFRP) are gradually replacing steel and are already used in models such as Mercedes-Benz and BMW, achieving weight reductions of 40% to 70%;

2. Integration: Integration with stabilizer bars and guide arms (e.g., "leaf spring-stabilizer integration") reduces the number of suspension components;

3. Intelligence: Variable stiffness leaf springs (using hydraulic/electromagnetic control of inter-leaf preload, enabling real-time stiffness adjustment to suit varying road conditions);

4. Precision Manufacturing: 3D printing of variable-section steel plates (forming complex shapes in one go) and robotic shot peening (improving reinforcement uniformity).

Summary: Automotive leaf springs are traditional elastic components with simple structure, low cost, and high load-bearing capacity. They achieve their functions through stacking multiple leaf springs or using a variable-section design. They are widely used in commercial vehicles and some off-road vehicles. With the increasing demand for lightweight and comfortable vehicles, their materials are evolving from spring steel to composite materials, and their structures are moving towards fewer leaf springs and more integrated systems. In the future, they will maintain their load-bearing advantages while further improving performance and efficiency.
