Cement Tanker Emergency Relay Valve Technical Description

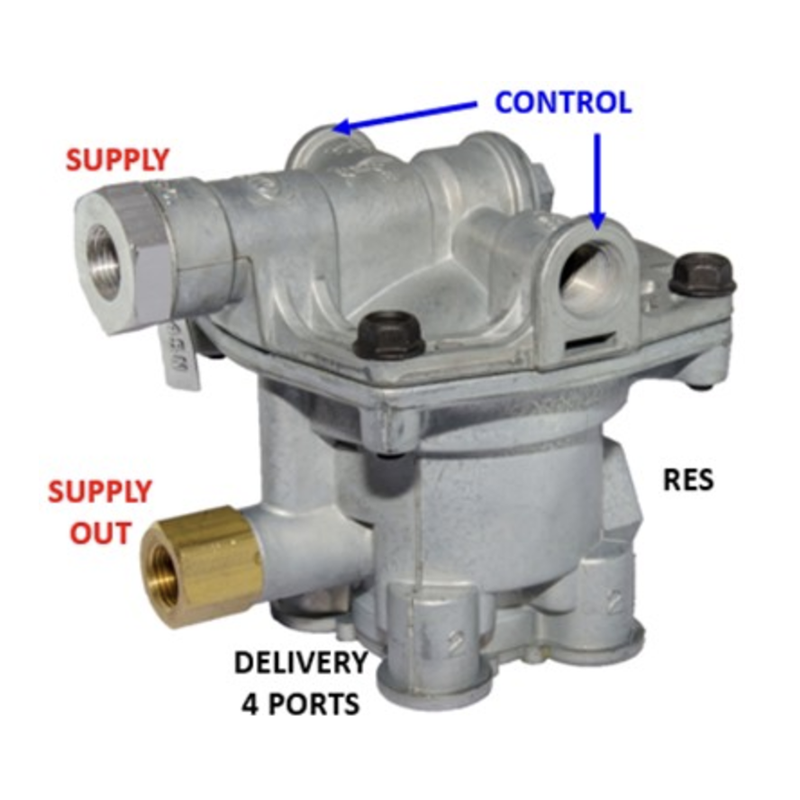

The emergency relay valve (**Emergency Relay Valve**) is a key component in the brake system of a cement tanker. It is primarily used to **quickly respond to brake signals, amplify brake pressure, and ensure emergency braking in the event of a brake system failure**, thereby ensuring driving safety.
Functions of the Emergency Relay Valve
1. Quick Braking Response:
- When the driver depresses the brake pedal, the emergency relay valve quickly transfers high-pressure air from the air reservoir to the brake chamber, shortening braking delay.
2. Air Pressure Amplification:
- The relay valve's amplification function ensures sufficient air pressure in the brake chamber, increasing braking force.
3. Emergency Brake Backup:
- In the event of a primary brake system failure (e.g., a ruptured air line), the emergency relay valve can still operate independently to prevent vehicle loss of control.
4. Balancing Front and Rear Braking Force:
- Adjusts brake pressure on the front and rear axles to prevent the vehicle from spinning or nodding during braking.
Summary
The emergency relay valve is the "safety guard" of the cement tanker's braking system, and its reliability is directly related to driving safety. Regularly checking the seal, cleaning the valve body, and testing the emergency function are key to preventing failures. If any braking abnormality is detected, immediate repair is required to avoid accidents.
