In cement tank trucks, the tie rod (also known as the stabilizer bar or anti-sway bar) is a critical structural component, primarily used to enhance tank stability, reduce sway during driving or operation, and ensure safe vehicle operation. The following is a detailed introduction to the tie rod on cement tank trucks:
Functions of the Tie Rod
1. Stabilize the Tank: Prevent excessive swaying during cornering, bumpy conditions, or unloading.
2. Distribute Force: Balance dynamic loads between the tank and the vehicle frame, reducing localized stress concentrations.
3. Protect the Hydraulic System: Reduce the impact of tank sway on key components such as the hydraulic motor and reducer.

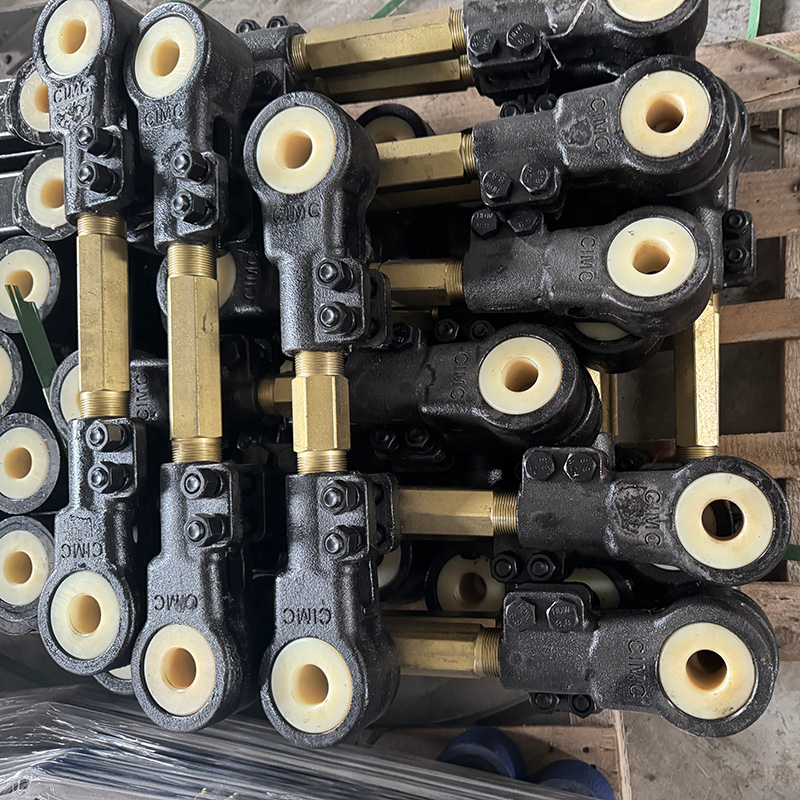

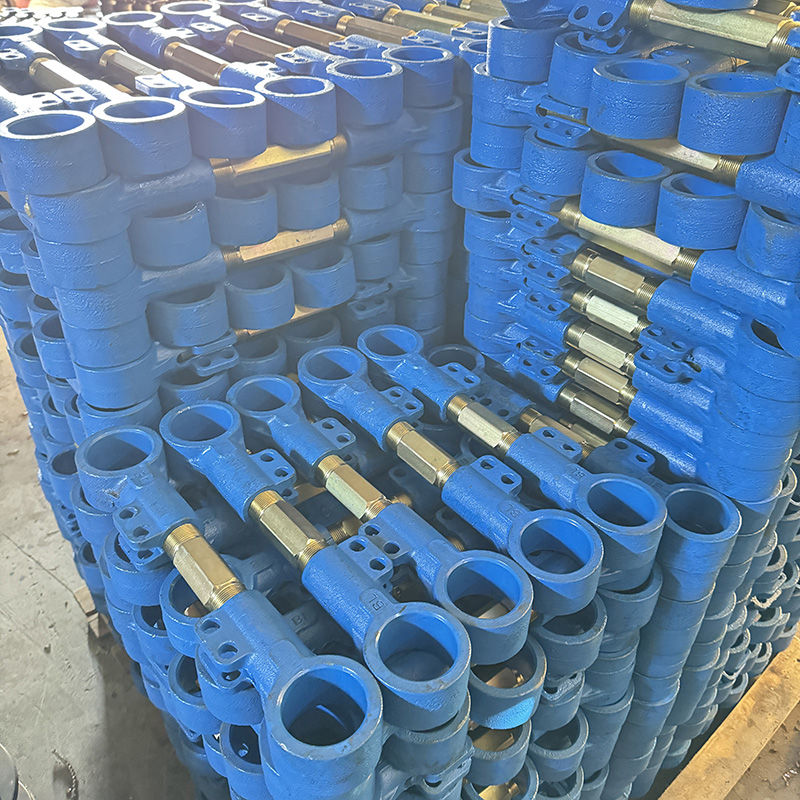

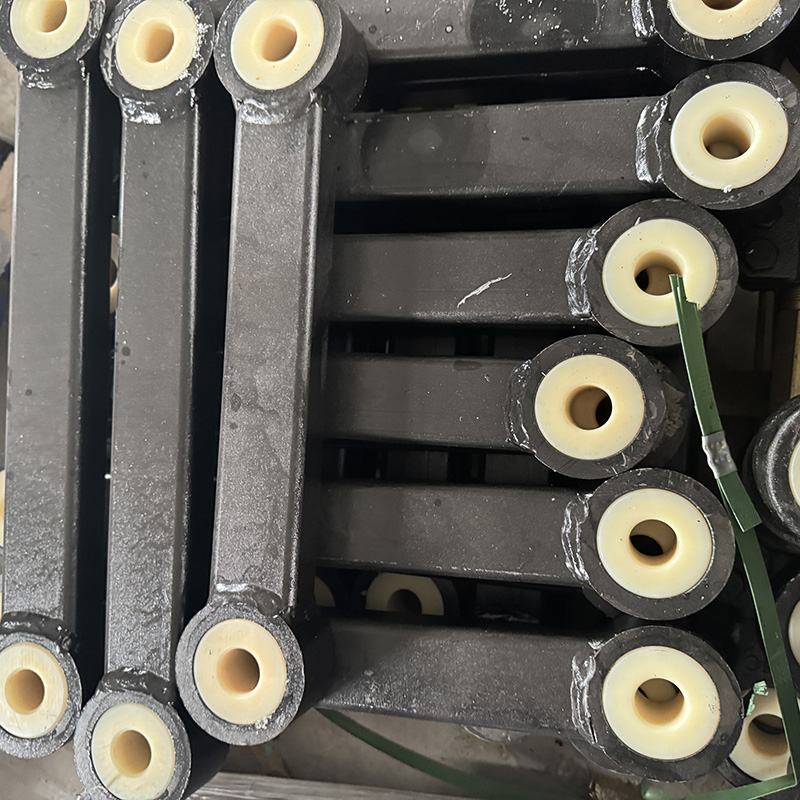

Tie Rod Structure
- The rod body is typically made of high-strength alloy steel (such as 40Cr or 42CrMo) with a rust-resistant surface treatment (such as galvanizing or spray coating). - Connecting Components:
- Ball Joint (or Rubber Bushing): Allows for a certain degree of flexible swing and reduces rigid friction.
- Adjusting Bolt: Used to adjust the tie rod length and ensure installation accuracy.
- Fixation Method:
- One end is connected to the tank support frame, and the other end is fixed to the frame beam.
Summary
The tie rod of a cement tanker is crucial to driving and operating stability and requires regular inspection, lubrication, and maintenance. Any deformation, abnormal noise, or looseness should be repaired or replaced promptly to ensure safe transportation.
