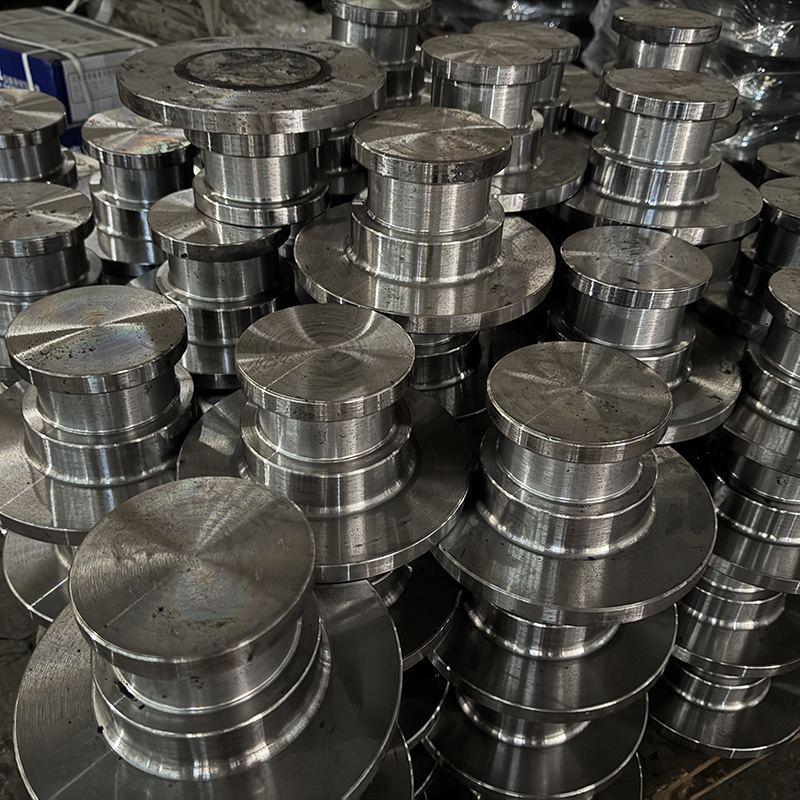

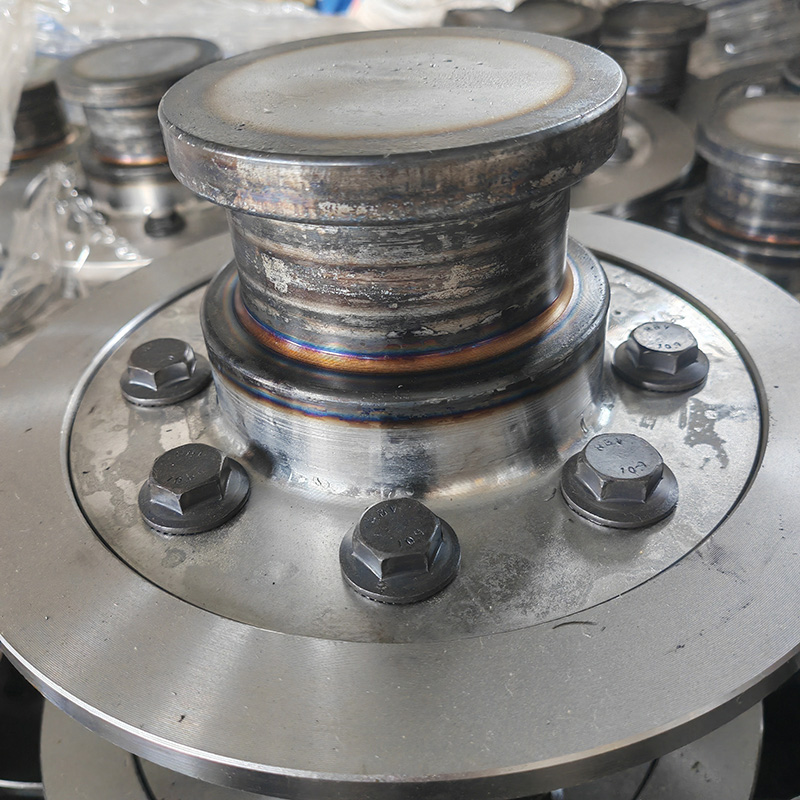

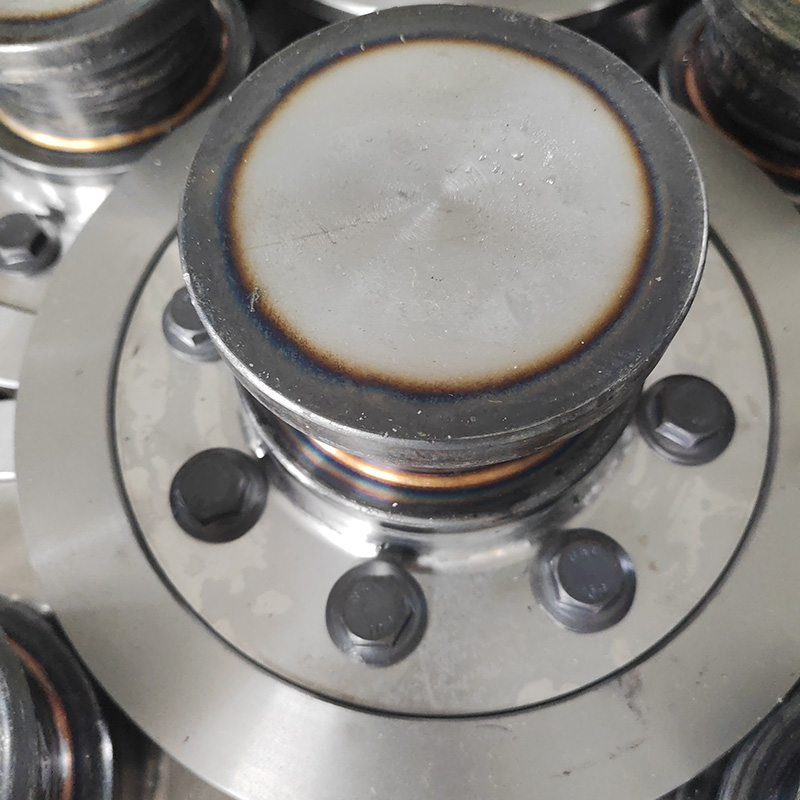

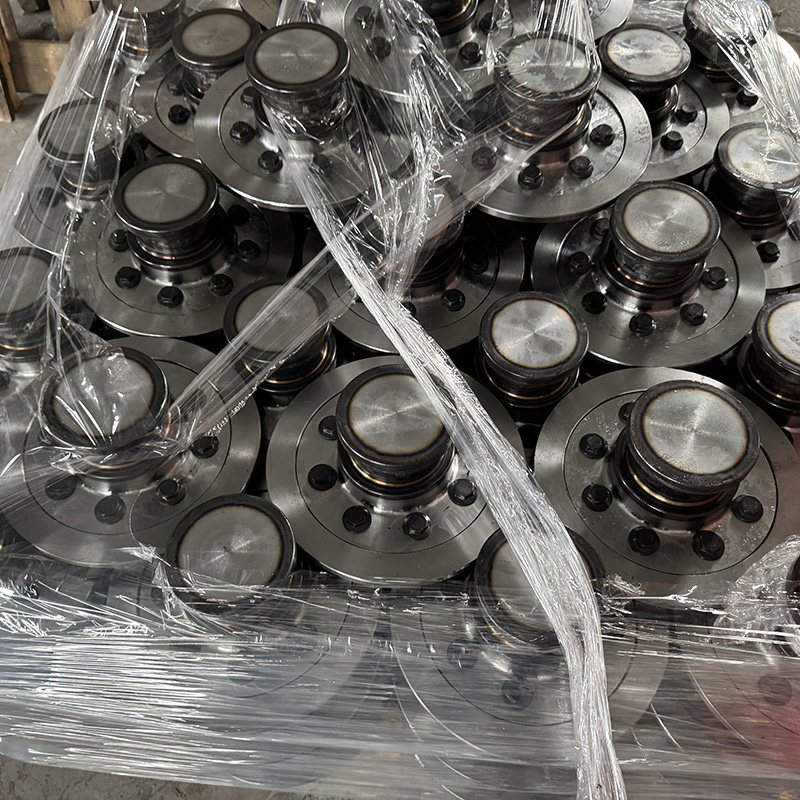

The tow pin (also known as the tow seat pin or saddle pin) in a cement tanker is a key component that connects the tanker semitrailer to the tractor (the front of the vehicle). It is responsible for transmitting traction and braking forces, as well as bearing a portion of the load, ensuring vehicle stability and safety. The following is a detailed introduction to the tow pin:
Functions of the Tow Pin
1. Power Transmission: Transmits power from the tractor to the semitrailer, enabling normal vehicle travel.
2. Load Support: Bears a portion of vertical load (such as the weight of the tank and cement).
3. Steering Control: Allows a certain degree of oscillation between the semitrailer and tractor, ensuring cornering flexibility.
4. Safety Lock: A mechanical locking mechanism prevents uncoupling.

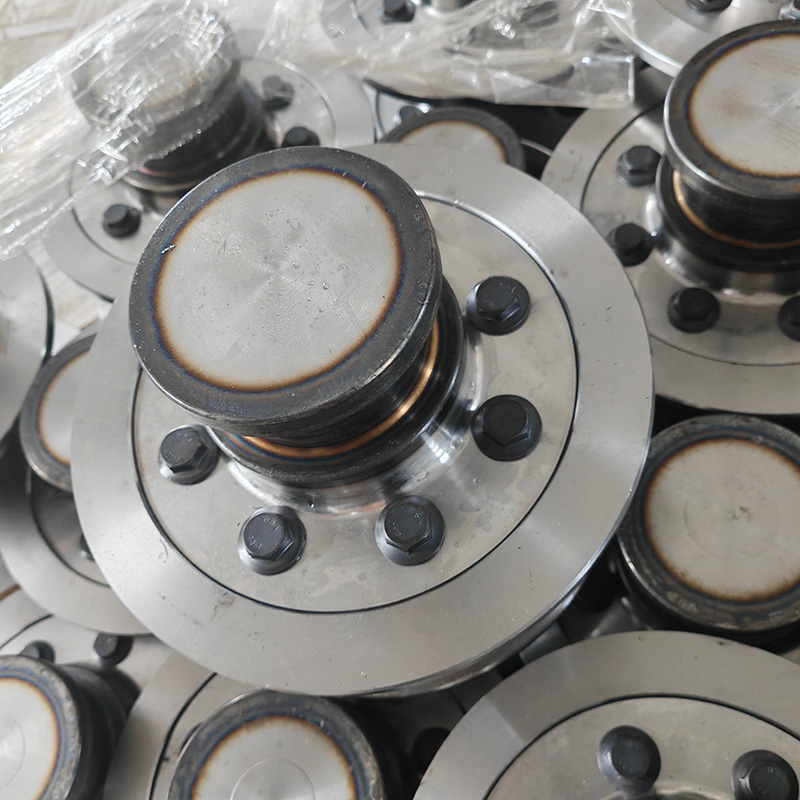

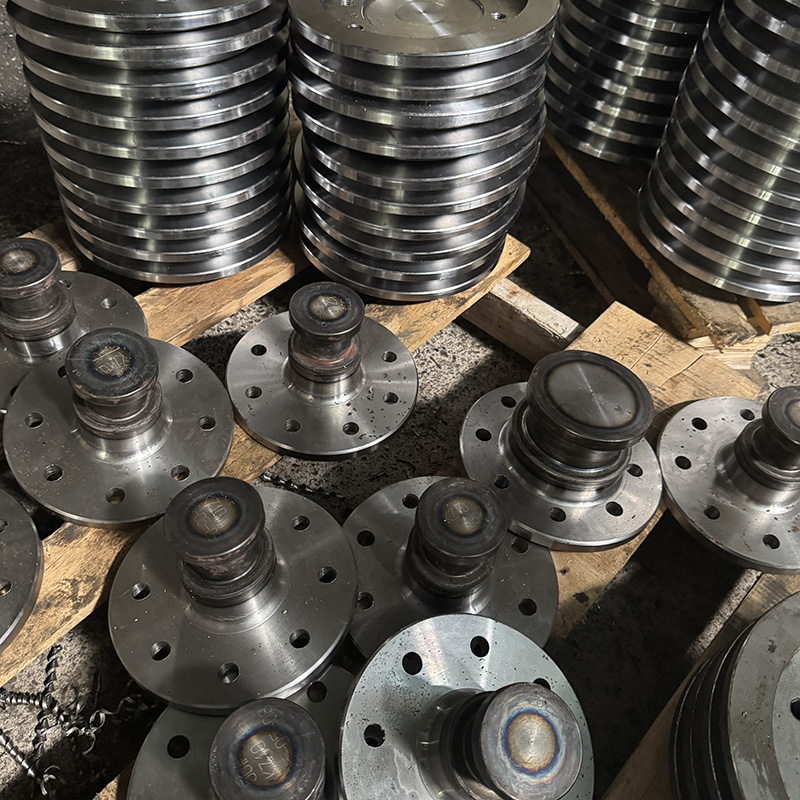

Tow Pin Structure
- Pin Body: Forged from high-strength alloy steel (such as 40Cr or 42CrMo), with a surface hardening treatment for improved wear resistance. - Locking mechanism:
- Mechanical lock: Locked by spring or hydraulic pressure to ensure a firm connection with the fifth wheel (saddle).
- Automatic/manual release: Some high-end models are equipped with an automatic unlocking function.
- Lubrication design: Some fifth wheel pins are equipped with grease nipples and require regular lubrication to reduce wear.
- Standard interface:
- Size: Common diameters are 50mm (light duty) and 90mm (heavy duty).
- Standard: Complies with ISO 8710 or GB/T 4606 national standards.
Classification and selection
(1) By fixing method
- Fixed fifth wheel pin: Welded to the front end of the semi-trailer, non-adjustable, suitable for standard working conditions.
- Adjustable fifth wheel pin: The height or angle can be fine-tuned to meet the matching requirements of different fifth wheels.
（2）By load level
| Type | Applicable load range | Typical application scenarios |
|------------|---------------|---------------------|
| Light (50mm) | ≤20 tons | Small cement tanker |
| Heavy (90mm) | 20~60 tons | Large bulk cement semi-trailer |
Installation and maintenance
Installation points
1. Alignment: Ensure that the traction pin and the center line of the traction seat are aligned to avoid eccentric wear.
2. Locking check: Manually test whether the locking mechanism is firm after installation.
3. Lubrication and maintenance: Apply high-temperature grease (such as molybdenum disulfide) regularly.
Common faults
- Wear: The gap between the pin body or the lock groove increases due to long-term friction.
- Fracture: Caused by overload or material fatigue (regular flaw detection is required).
- Lock Failure: Damaged spring or hydraulic lock oil leakage.
Safety Precautions
- Overloading is Strictly Prohibited: The rated load of the towing pin must match the gross vehicle weight.
- Regular Inspection: Check for wear every 50,000 kilometers or six months.
- Emergency Plan: If any towing pin abnormality (such as unusual noise) occurs while driving, stop the vehicle immediately and inspect it.
